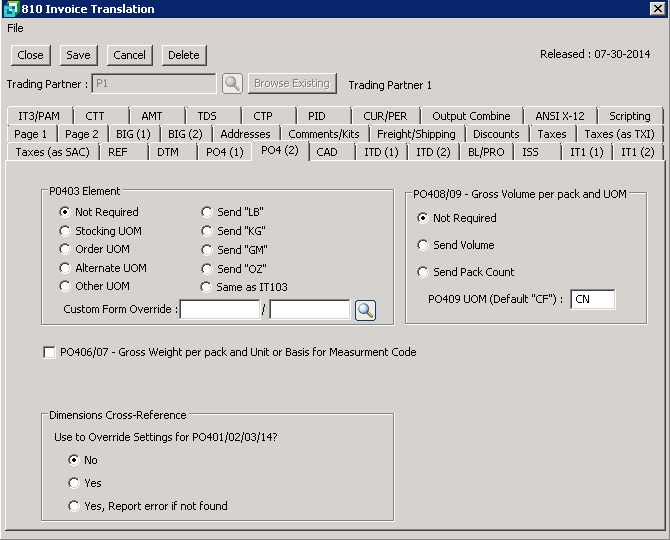

PO4 (2) Tab


The PO4(2) form is used to determine the UOM to be used in the PO403 element.



The following table outlines the prompts/options available when accessing this screen:


PO403 Element

Additional elements available to determine the quantity UOM for packs and inner containers.

Not Required

Stocking UOM


Order UOM


Alternate UOM


Other UOM


Send "LB"


Send "KG"


Send "GM"


Send "OZ"


Same as IT103


Custom Form Override: /

If the choice above is insufficient, then a custom form field with the required information can be created.  Enter or browse Custom Fields and select the custom form field.



PO406/07 - Gross Weight per pack and Unit or Basis for Measurement Code



Dimensions Cross-Reference

Select to have Dimensions Cross Reference Information as set in the Cross Reference, override settings for PO401/02/03/13.



Use to Override Settings for PO401/02/03/14?

No

Yes


Yes, Report error if not found



PO408/09 - Gross Volume per pack and UOM

Not Required

Send Volume


Send Pack Count


PO409 UOM (Default "CF"):
