DTM
DTM Tab

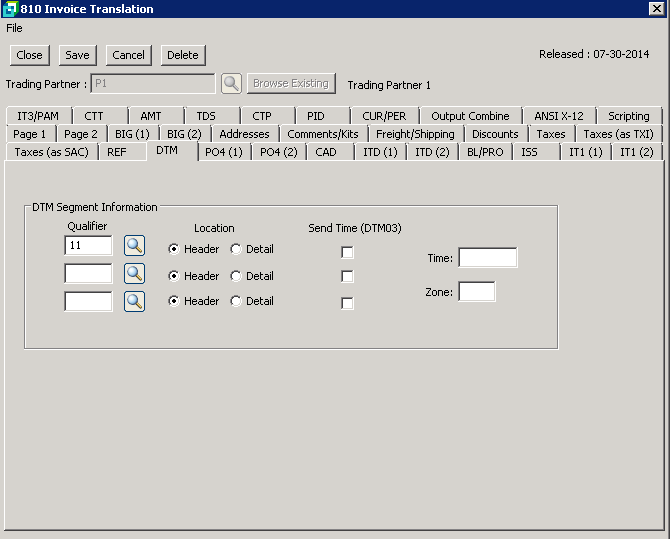

The following table outlines the prompts/options available when accessing this screen:
DTM Segment Information For the Qualifier enter or browse Date/Time/Qualifiers and select the required DTM qualifier. A maximum of 3 qualifiers can be selected. For Location for each qualifier selected, indicated whether the segment should be placed in the Header or Detail section of the 810 document. For Send Time, select if the time should be included with the date. |
|||
Qualifier |
Location |
Send Time (DTM03) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Time: |
Enter the current time to use on any DTM segments where the time is required. Time is entered as a 4-character number on a 24 hour clock., e.g. 1430 is 2:30 pm. |
||
Zone: |
Enter the EDI standard time zone |
||
