REF
REF Tab

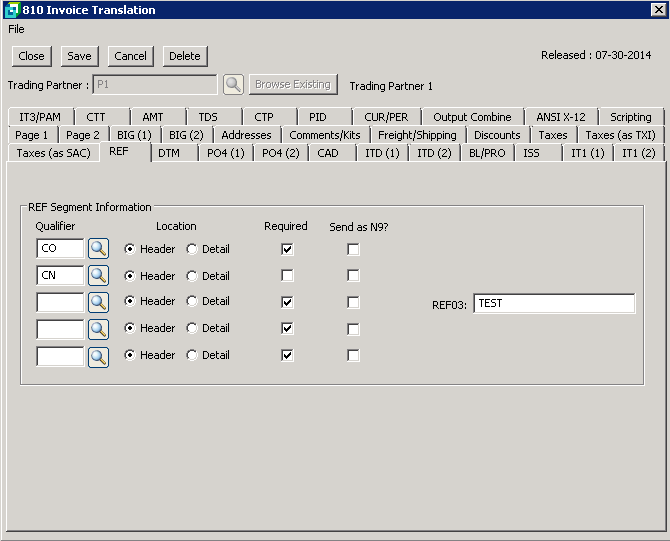

The following table outlines the prompts/options available when accessing this screen:
REF Segment Information Enter or browse Reference Qualifiers to select the required REF Qualifiers a maximum of 5 qualifiers can be selected. On location for each qualifier selected, indicate whether the segment should be placed in the Header or Detail section of the 810 document. On Required select the REF segment is required by the Trading Partner. For Send as N9?, Select if the information should be sent as an N9 segment rather than a REF segment. |
||||
Qualifier |
Location |
Required |
Send as N9? |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
REF03 |
Enter the REF03 comment to be included with third REF segment qualifier selected above. The first two qualifiers may be left blank. Only one REF segment requires a REF93 element. |
|||
