SLN Tab

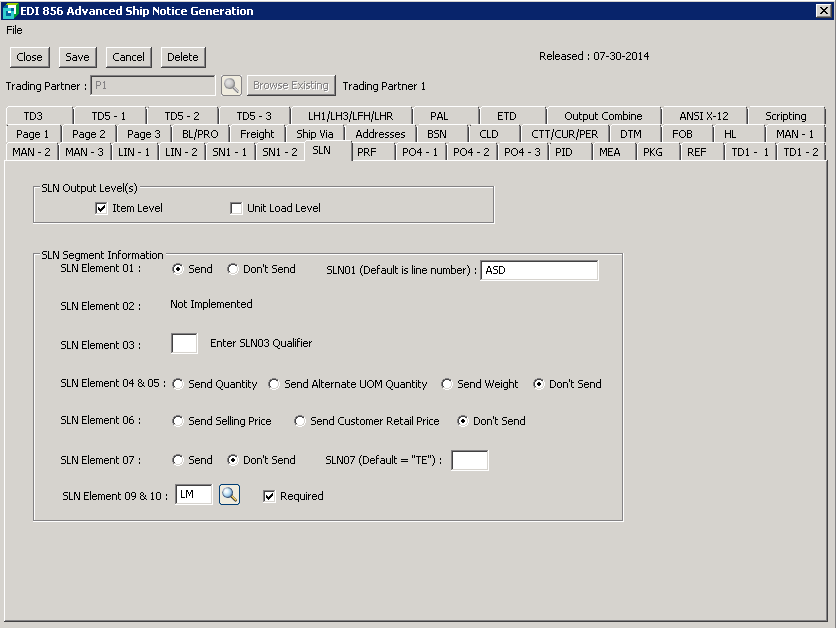

The SLN screen is used to define sub line item details for a shipment. The type of information usually defined in this segment includes total units shipped in a pack or carton, basis for measurement, quantity shipped to date, selling price and other details for the shipment.



The following table outlines the prompts/options available when accessing this screen:


SLN Output Level(s)

Item Level

Select if SLN segment is to be sent at Item level in the 856 Document

Unit Load Level

Select to send the SLN Segment at the Unit Load level in the 856 document


SLN Segment Information

SLN Element 01:

Send   Don't Send          SLN01 (Default is Line Number:


SLN Element 02:

Not Implemented


SLN Element 03:

Enter SLN03 Qualifier


SLN Element 04 & 05

Send Quantity     Send Alternate UOM Quantity           Send Weight         Don't Send


SLN Element 06:

Send Selling Price       Send Customer Retail Price   Don't Send


SLN Element 07:

Send         Don't Send        SLN01 (Default is Line Number:


SLN Element 09 & 10:

    Required
