CTT Tab

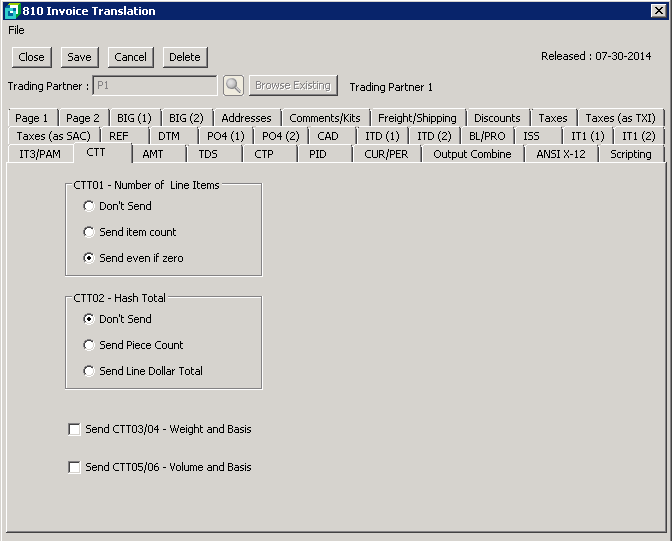

The CTT form is used to provide hash totals to validate transaction completeness and correctness.



The following table outlines the prompts/options available when accessing this screen:


CTT01 - Number of Line Items

Select to send the total number of line items in a transaction set.

Don't Send


Send item count


Send even if zero



CTT02 - Hash Total

Select the required option for hash totals.

Don't Send

select if hash totals are not required.

Send Piece count

select to send the total piece count in the transaction set.

Send Line Dollar Total

Select to send the total dollar amount of the lines.



Send CTT03/04 - Weight and Basis

Select to send the weight and the basis for the weight



Send CTT05/06 - Volume and Basis

Select to send the volume and the basis for the volume.
