Addresses

Addresses Tab

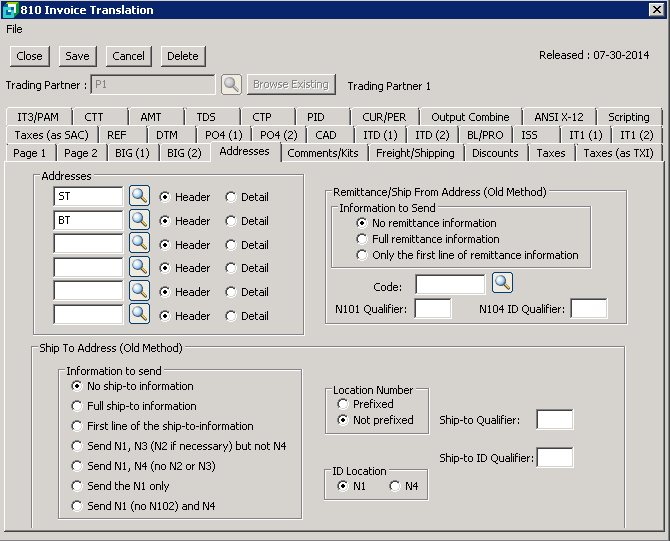

The Addresses form is used to enter various types of address information, such as bill to and ship to information. The address configuration is set in the Cross References.

The following table outlines the prompts/options available when accessing this screen:

Addresses Up to 6 addresses may be sent in the 810 Transmission. Addresses are set in the Outgoing Addresses Cross Reference. Enter or browse Outgoing Address Configuration and select the required address codes and whether they are required in the Header or the Detail section of the transmission.
Header Detail
Header Detail
Header Detail
Header Detail
Header Detail
Header Detail

Ship to Address (Old Method) This option is no longer used

Information to Send
No ship-to information
Full ship-to Information
First line of the ship-to-information
Send N1, N3 (N2 if necessary) but not N4
Send N1, N4 (no N2 or N3)
Send the N1 only
Send N1 (no N102) and N4

Remittance/Ship From Address (Old Method) This option is no longer used.

Information to Send
No remittance information
Full remittance Information
Only the first line of remittance information

Code:
N101 Qualifier:
N104 ID Qualifier:

Location Number
Prefixed
Not Prefixed

ID Location
N1
N4

Ship-to Qualifier:

Ship-to ID Qualifier:
